Save costs and weight: the new iglidur K250 plain bearings, specifically constructed for sheet metals that have to be painted in immersion processes

Due to their shape, the new iglidur K250 clip bearings can be easily clipped into sheet metals without getting lost. Thanks to its temperature resistance, the new material recipe also allows for absolute dimensional stability beyond the e-coating process.

Tech up

High temperature resistance
Suitable for cathodic dip/e-coating
Dimensionally stable

Cost down

Time-saving, fast assembly
Maintenance-free
Cost-effective due to standard dimensions

Proof

Clip bearings are already being used in millions of applications, e.g. in the automotive industry and provide the highest level of comfort in seats, amongst other things

Sustainability

Environmentally friendly, because no additional lubricants are required
Good coefficient of wear
Long service life
Lighter than metallic solutions

igus supports the circular economy of plastics and is investing in chemical recycling. Learn more about this topic.

To the product page

Video

Make a non-binding enquiry

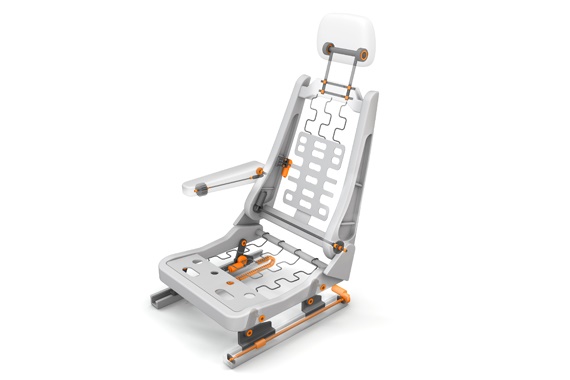

Car seat with iglidur® plain bearings for e-coating processes

Challenges from real life: from rattling and squeaking seats

We have developed the iglidur K250 clip bearings for this purpose.

A challenge that not only automotive manufacturers face: cost pressure, mass production and increasing demands regarding quality and feel have to be brought in line. They have to produce elegant surfaces as cost-effectively as possible and realise clear lines and shapes. At the same time, moving parts should work without any sort of rattling (i.e. bearing clearance) and squeaking. In other words: the perfect user experience. This applies not only to vehicles, but also to kitchen devices or furniture.

One problem: the manufacturing processes often set additional requirements for the plain bearings. A mixture of bad installation tolerances in stamped sheet metals, high assembly forces as well as hot temperatures and aggressive chemicals during painting in immersion baths will break any metal plain bearing. Either the outer steel base layer rusts or the sensitive PTFE sliding film is damaged. The result: rattling and squeaking.

Our expert will explain the advantages of iglidur K250 clip bearings

What are iglidur materials made of?

All iglidur materials consist of three components: base polymers, fibres and fillers, solid lubricants, whereby the bearings made of iglidur materials are maintenance-free and lubrication-free. As it is not possible for one universal material to fulfil all tasks equally well, there are different iglidur materials. Each has a different composition of the three components and a different application area.

Base polymers

The base polymers are responsible for the iglidur materials' wear resistance. They ensure that the lubricants are not subjected to a surface pressure that is too high.

Fibres and fillers

These components strengthen the materials so that they withstand high forces or edge loads and can be used continuously.

Solid lubricants

They lubricate components made of iglidur materials independently and prevent friction. They are distributed in the entire material in the form of microscopic particles.

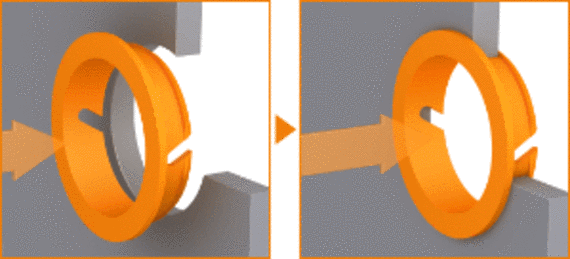

Installation in two steps

Simply press in plain bearings axially
Check the correct position of the plain bearing
Done! The bearing is now ready for use

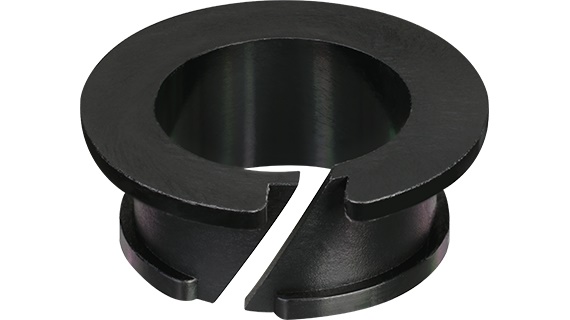

Your advantages with iglidur K250 clip bearings

No lubrication required
Homogenous construction, no sensitive sliding film
Locating spigot thanks to clip design
Temperature-resistant up to 240°C
Low moisture absorption
Available from stock in five sizes or designed according to your specifications

iglidur K250 clip bearings for your application

The iglidur K250 clip bearings are not only suitable for seat adjustments in the automotive industry. The flexible and temperature-resistant material can also be used in this form for sheet metal feedthrough in surroundings with high temperatures or generally changing temperature conditions. Due to their low moisture absorption, the mass of the plain bearings barely changes, even when in consistent contact with moisture. The clearance situation in the bearing mostly remains unchanged. Ideal application areas for iglidur K250 clip bearings are all sorts of sheet metal feedthrough in automotive, furniture and household technology or in mechanical engineering
