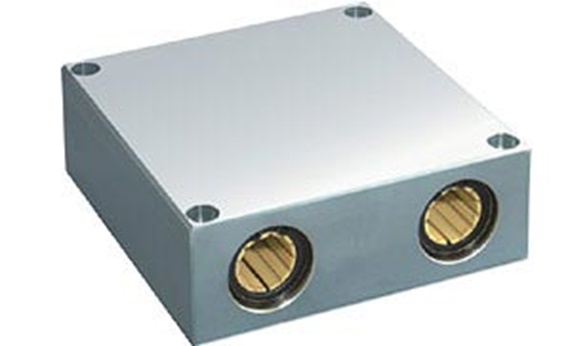

drylin® R - RQA quad block, enclosed, mm

Special features

Housing: Aluminum

Equipped with drylin® R linear plain bearings, order number RJUM-01-ø, RJUM-03-ø or RJM-01

Maintenance-free

Bearings are secured with retaining rings according to DIN 472

Mounting bolts DIN 912-8.8, lock washer DIN 7980

Recommended tolerance for the shaft: h6-h10

RQA quad block, enclosed, mm

d1 [mm]:

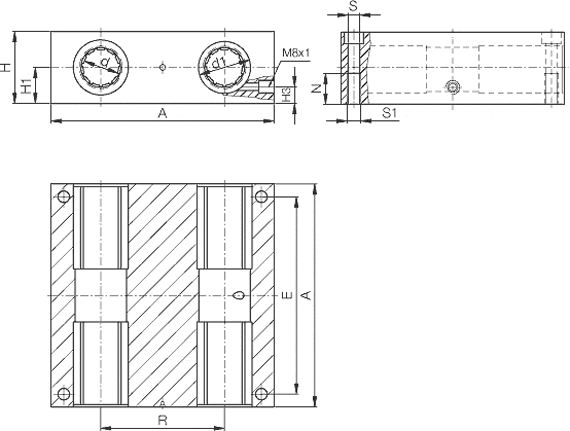

Dimensions [mm]

Order no.	d	d1	A	H	H1	H3	R	N	E	S	S1
RQA-01	Standard with OJUM-01
RQA-03	Adjustment of alignment with OJUM-03
RQA-4	Solid polymer bearing with RJM-01
	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
RQA-01-08	8	16	65	23	11.5	8	32	11	55	4.3	M5	2,724.33 CZK
RQA-01-10	10	19	70	25	12.5	10	34	13	60	4.3	M5	3,101.53 CZK
RQA-01-12	12	22	85	32	16	13	42	13	73	5.3	M6	3,235.19 CZK
RQA-01-16	16	26	100	36	18	15	54	13	88	5.3	M6	3,742.70 CZK
RQA-01-20	20	32	130	46	23	19	72	18	115	6.6	M8	5,003.88 CZK
RQA-01-25	25	40	160	56	28	24	88	22	140	8.4	M10	6,913.29 CZK
RQA-01-30	30	47	180	64	32	27	96	26	158	10.5	M12	8,968.23 CZK
RQA-01-40	40	62	230	79	40	35	122	34	202	13.5	M16	14,628.88 CZK
RQA-03-08	8	16	65	23	11.5	8	32	11	55	4.3	M5	Upon request
RQA-03-10	10	19	70	25	12.5	10	34	13	60	4.3	M5	3,386.66 CZK
RQA-03-12	12	22	85	32	16	13	42	13	73	5.3	M6	3,388.52 CZK
RQA-03-16	16	26	100	36	18	15	54	13	88	5.3	M6	3,969.55 CZK
RQA-03-20	20	32	130	46	23	19	72	18	115	6.6	M8	5,245.58 CZK
RQA-03-25	25	40	160	56	28	24	88	22	140	8.4	M10	7,190.62 CZK
RQA-03-30	30	47	180	64	32	27	96	26	158	10.5	M12	9,329.10 CZK
RQA-03-40	40	62	230	79	40	35	122	34	202	13.5	M16	15,147.17 CZK
RQA-04-08	8	16	65	23	11.5	8	32	11	55	4.3	M5	2,386.85 CZK
RQA-04-10	10	19	70	25	12.5	10	34	13	60	4.3	M5	2,367.92 CZK
RQA-04-12	12	22	85	32	16	13	42	13	73	5.3	M6	2,561.34 CZK
RQA-04-16	16	26	100	36	18	15	54	13	88	5.3	M6	2,958.60 CZK
RQA-04-20	20	32	130	46	23	19	72	18	115	6.6	M8	4,135.13 CZK
RQA-04-25	25	40	160	56	28	24	88	22	140	8.4	M10	5,769.80 CZK
RQA-04-30	30	47	180	64	32	27	96	26	158	10.5	M12	7,455.34 CZK
RQA-04-40	40	62	230	79	40	35	122	34	202	13.5	M16	12,076.45 CZK
