Flange bearings

igubal® flange bearings are resistant to chemicals, dust and coarse dirt, UV radiation and nuclear radiation. Flange bearings function properly at extreme temperatures between -40 and +200 °C and are corrosion-free in damp and wet environments. They are thus suitable for reliable deployment in demanding environments and always maintain their running properties and their wear resistance. Another advantage: both types (4-hole and 2-hole versions) of igubal® flange bearings are child's play to install – even in difficult-to-reach places. The 2-hole versions are equipped with two elongated holes for attachment, which permits adjustment at any time. In this respect, 100% alignment is unnecessary. They automatically equal out alignment errors. The flange bearings (dimensional series E) are deployed in plant and machine engineering, in automation technology, in the agricultural industry and in the food sector.

Kategorie
Filtr
Size
Requirements
Material
Temperatures

Pocet výrobku: 24

Novinka

Fixed flange bearings with 2 mounting holes, PFL, J4EM, igubal®

  • PFL204 up to PFL206
  • Lubrication-free and maintenance-free
  • Cost-effective J4EM spherical ball
  • Resistant to dirt
od 140,50 CZK/ks
4 položek, z toho připraveno k přepravě:
3 in 2 týdnů
'Na stránku výrobku
Novinka

Flange bearings with 2 mounting holes, PFL, igubal®

  • PFL203 up to PFL208
  • Lubrication-free and maintenance-free
  • Cost-effective
  • Resistant to dirt
od 137,83 CZK/ks
6 položek, z toho připraveno k přepravě:
5 in 2 týdnů
'Na stránku výrobku

Fixed flange bearings with 4 mounting holes, cast iron housing UC, igubal® JEM-SP

  • UC204 to UC206, UC208 and UC210
  • Lubrication-free and maintenance-free
  • Cost-effective
  • Resistant to dirt
  • High loads
od 489,71 CZK/ks
'Na stránku výrobku

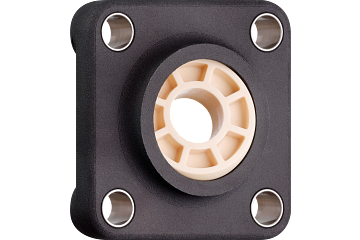

Fixed flange bearing with 4 mounting holes, polymer housing, igubal® JEM-SP

  • Polymer housing as an alternative to UC204, 206 and 208
  • Lubrication-free and maintenance-free
  • Cost-effective
  • Lightweight and rust-proof
  • High loads
od 525,65 CZK/ks
'Na stránku výrobku

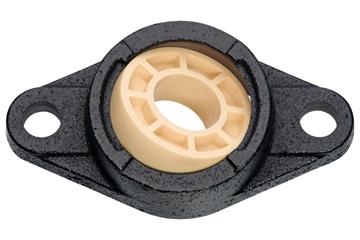

Fixed flange bearings with 2 mounting holes, cast iron housing UC, igubal® JEM-SP

  • UC204 to UC206, UC208 and UC210
  • Lubrication-free and maintenance-free
  • Cost-effective
  • Resistant to dirt
  • High loads
od 444,79 CZK/ks
5 položek, z toho připraveno k přepravě:
3 in 2 týdnů
'Na stránku výrobku
Novinka

Flange bearings with 2 mounting holes, EFOM, igubal®, spherical ball iglidur® FC180

  • Food-safe material
  • Detectable
  • Dimensional series E following DIN ISO 12240
  • Housing material: igumid FC
  • Material of spherical ball: iglidur® FC180
  • Easy to fit
  • Compensation for misalignment
  • Lubrication-free and maintenance-free
  • Visually and magnetically detectable
  • In industry standard blue
  • Corrosion and media-resistant
  • Vibration-dampening
  • Cost-effective
od 332,12 CZK/ks
'Na stránku výrobku

Flange bearings with 2 mounting holes, EFOM, igubal®, spherical ball iglidur® W300

  • Dimensional series: E following DIN ISO 12240
  • Housing material: igumid G
  • Material of spherical ball: iglidur® W300 (highly wear resistant)
  • Easy installation
  • Compensation of misalignment errors
  • Absolutely corrosion-resistant
  • Very lightweight
  • Maintenance-free dry operation
  • Time saving through fast assembly
od 147,03 CZK/ks
12 položek, z toho připraveno k přepravě:
12 in 72 hodin
'Na stránku výrobku

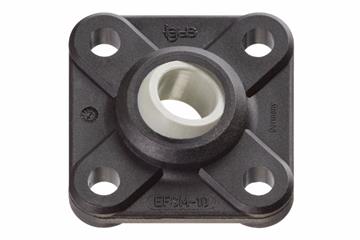

Flange bearings with 4 mounting holes, EFSM, igubal®, spherical ball iglidur® W300

  • Dimensional series E following DIN ISO 12240
  • Housing material: igumid G
  • Spherical ball made of highly wear-resistant iglidur® W300
  • Easy installation
  • Compensation of misalignment errors
  • Absolutely corrosion-resistant
  • Very lightweight
  • Maintenance-free dry operation
  • Time saving through fast assembly
od 169,90 CZK/ks
12 položek, z toho připraveno k přepravě:
12 in 72 hodin
'Na stránku výrobku

Flange bearing with ball stud, female thread, GFSM-IG igubal®

  • Thread: female thread
  • Housing material: igumid G
  • Material of ball stud: galvanised steel
  • Maintenance-free and corrosion-resistant
  • Easy connection – easy assembly
  • Compensation of misalignment errors
  • Time saving through fast assembly
od 232,82 CZK/ks
3 položek, z toho připraveno k přepravě:
3 in 72 hodin
'Na stránku výrobku

Flange bearing with ball stud, male thread, GFSM-AG, igubal®

  • Thread: male thread
  • Housing material: igumid G
  • Material of ball stud: galvanised steel
  • Maintenance-free and corrosion-resistant
  • Easy connection – easy assembly
  • Compensation of misalignment errors
  • Time saving through fast assembly
od 185,85 CZK/ks
3 položek, z toho připraveno k přepravě:
3 in 72 hodin
'Na stránku výrobku

Flange bearing with 4 mounting holes and split housing, KFSM GT igubal®, spherical ball iglidur® J

  • Dimensional series: K following DIN ISO 12240
  • Housing material: RN33
  • Material of spherical ball: iglidur® J
  • Preassembled delivery
  • Option with push in feet
  • Dirt-resistant
  • Lightweight
  • Low installation space
  • For high static loads
  • High rigidity and durability
  • Predictable service life
  • Maintenance-free dry operation
  • Mounting: with plug-in feet M10, without plug-in feet M12
  • Time saving through fast assembly
od 852,43 CZK/ks
8 položek, z toho připraveno k přepravě:
8 in 72 hodin
'Na stránku výrobku

High-temperature flange bearings with 2 mounting holes, EFOM-HT, igubal®, spherical ball iglidur® X

  • Dimensional series: E following DIN ISO 12240
  • Housing material: iguton G
  • Material of spherical ball: iglidur® X
  • Usable up to +200 °C
  • Easy installation
  • Compensation of misalignment errors
  • Absolutely corrosion-resistant
  • Very lightweight
  • Chemical resistance
  • Can be used underwater
  • Time saving through fast assembly
od 309,60 CZK/ks
5 položek, z toho připraveno k přepravě:
5 in 72 hodin
'Na stránku výrobku

High-temperature flange bearings with 4 mounting holes, EFSM-HT, igubal®, spherical ball iglidur® X

  • Dimensional series: E following DIN ISO 12240
  • Housing material: iguton G
  • Material of spherical ball: iglidur® X
  • Usable up to +200 °C
  • Easy installation
  • Compensation of misalignment errors
  • Absolutely corrosion-resistant
  • Very lightweight
  • Chemical resistance
  • Can be used underwater
  • Time saving through fast assembly
od 339,84 CZK/ks
5 položek, z toho připraveno k přepravě:
5 in 72 hodin
'Na stránku výrobku

Flange bearings with 2 mounting holes, EFOM, igubal®, spherical ball iglidur® J4V

  • Dimensional series: E following DIN ISO 12240
  • Housing material: igumid G
  • Material of spherical ball: iglidur® J4V
  • Easy installation
  • Compensation of misalignment errors
  • Absolutely corrosion-resistant
  • Very lightweight
  • Maintenance-free dry operation
  • Time saving through fast assembly
od 184,62 CZK/ks
5 položek, z toho připraveno k přepravě:
5 in 72 hodin
'Na stránku výrobku

Flange bearings with 2 mounting holes, EFOM, igubal®, spherical ball iglidur® J

  • Dimensional series: E following DIN ISO 12240
  • Housing material: igumid G
  • Material of spherical ball: iglidur® J
  • Easy installation
  • Compensation of misalignment errors
  • Absolutely corrosion-resistant
  • Very lightweight
  • Maintenance-free dry operation
  • Time saving through fast assembly
od 147,03 CZK/ks
12 položek, z toho připraveno k přepravě:
12 in 72 hodin
'Na stránku výrobku
