Motor cables

chainflex® motor cables are available as PVC and TPE motor cables and as multi-core and single-core cables. Flame-retardant, oil-resistant, halogen-free and UV-resistant versions are available as shielded or unshielded cable. The chainflex® motor cables are used in high speeds and accelerations. Tested in the igus® laboratory with millions of cycles in e-chains®, they provide guaranteed safety against failure.

  • Bending radii up to 5xd
  • Total shield with optimised braiding angle
  • Jacket materials: PVC, iguPUR, PUR or TPE

Cable price-check

Cable price-check

The best price-cable ratio. With the igus® price check, the right cable for your needs can be found very quickly.
FAQs

FAQs

Frequently asked questions about igus® chainflex® and readycable®
Ready for sending within 36 hours

Ready for sending within 36 hours

chainflex cables - ready for shipment within 36 hours and with up to 36 months guarantee!
Kategorie
Kabely pro pohyb
Kabely připravené k připojení
Nezkompletované kabely
Ovládací kabely
Datové kabely
Motorové kabely
Sběrnicové kabely
Kabely pro měřící systémy
Servo kabely
Koaxiální kabely
Optické kabely
Speciální kabely
Kabely pro roboty
Pneumatické hadice
Filtr
Základní požadavky
Zobrazit podrobnosti
Cable structure
Material
Electrical information
Requirements
Drive technology system
List
Tile

Pocet výrobku: 25

chainflex® motor cable CFCRANE
chainflex® motor cable CFCRANE
  • Requirements: For maximum voltages and outputs
  • Outer jacket: igupren
  • Overall shield
  • Flame retardant
  • Silicone-free
  • UV resistance: High
  • Oil resistance: Oil-resistant according to DIN EN 60811-2-1
  • chainflex® class: 6.6.3.1
na požádání
'Na stránku výrobku
UV resistance High Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Lead free Following 2011/65/EU (RoHS-II)

chainflex® motor cable CF885
chainflex® motor cable CF885
  • Requirements: For flexing applications
  • Outer jacket: PVC
  • Flame retardant
  • Silicone-free
  • Oil resistance: No oil resistance
  • chainflex® class: 3.1.1.1
od 52,14 CZK/m
6 položek, z toho připraveno k přepravě:
6 in 7 dnů
'Na stránku výrobku
Flame retardant According to IEC 60332-1-2, CEI 20, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). EAC Certified to no. TC RU C-DE. ME77.B.01561 CTP Certified to no. C-DE. PB49.B.00450 Lead free Following 2011/65/EU (RoHS-II) UL/CSA AWM Style 10492 and 2570, 1.000 V, 80 °C

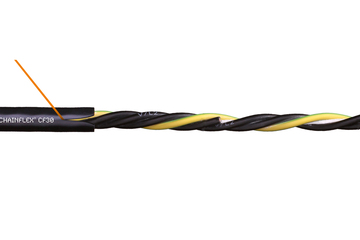

chainflex® motor cable CF30
chainflex® motor cable CF30
  • Requirements: For heavy duty applications
  • Outer jacket: PVC
  • Flame retardant
  • Silicone-free
  • UV resistance: Medium
  • Oil resistance: Oil-resistant according to DIN EN 50363-4-1
  • CFRIP®
  • chainflex® class: 5.5.2.2
od 108,90 CZK/m
14 položek, z toho připraveno k přepravě:
12 in 7 dnů
'Na stránku výrobku
UV resistance Medium Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified to no. TC RU C-DE. ME77.B.01218 CTP Certified to no. C-DE.PB49.B.00416 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 2. Outer jacket material complies with CF5.10.07, tested by IPA according to standard 14644-1 UL/CSA AWM Style 10492 and 2570, 1.000 V, 80 °C

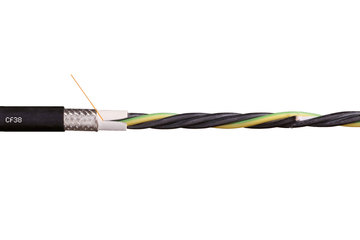

chainflex® motor cable CF38
chainflex® motor cable CF38
  • Requirements: For heaviest duty applications
  • Outer jacket: TPE
  • Overall shield
  • Hydrolysis and microbe-resistant
  • Halogen-free
  • Silicone-free
  • UV resistance: High
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • PVC-free
  • CFRIP®
  • chainflex® class: 7.6.4.1
od 269,94 CZK/m
9 položek, z toho připraveno k přepravě:
7 in 7 dnů
'Na stránku výrobku
UV resistance High Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 EAC Certified according to No. TC RU C-DE.ME77.B.01255 Lead free Following 2011/65/EU (RoHS-II) Clean room According to ISO Class 1. Outer jacket material complies with CF9.15.07, tested by IPA according to standard 14644-1

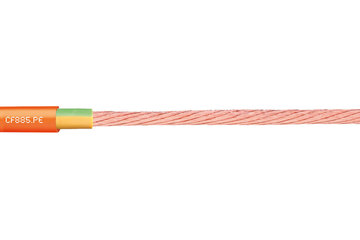

chainflex® motor cable CF885.PE, spindle cable/single core
chainflex® motor cable CF885.PE, spindle cable/single core
  • Requirements: For flexing applications
  • Outer jacket: PVC
  • Flame retardant
  • Silicone-free
  • Oil resistance: No oil resistance
  • chainflex® class: 3.1.1.1
od 33,66 CZK/m
6 položek, z toho připraveno k přepravě:
6 in 7 dnů
'Na stránku výrobku
Flame retardant According to IEC 60332-1-2, CEI 20, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). EAC Certified to no. TC RU C-DE. ME77.B.01561 CTP Certified to no. C-DE. PB49.B.00450 UL/CSA AWM Style 10107, 600 V, 80 °C

chainflex® motor cable CF340
chainflex® motor cable CF340
  • Requirements: For heaviest duty applications
  • Outer jacket: TPE
  • Overall shield
  • Hydrolysis and microbe-resistant
  • Halogen-free
  • Silicone-free
  • UV resistance: High
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • PVC-free
  • chainflex® class: 7.6.4.1
od 138,93 CZK/m
11 položek, z toho připraveno k přepravě:
9 in 7 dnů
'Na stránku výrobku
UV resistance High Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 EAC Certified according to No. TC RU C-DE.ME77.B.01255 Lead free Following 2011/65/EU (RoHS-II) Clean room According to ISO Class 1. Outer jacket material complies with CF9.15.07, tested by IPA according to standard 14644-1

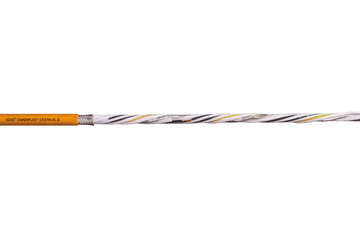

chainflex® servo cable CF270.UL.D
chainflex® servo cable CF270.UL.D
  • Requirements: For medium duty applications
  • Outer jacket: PUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Halogen-free
  • Silicone-free
  • Flame retardant
  • Offshore
  • Coolant resistant
  • Hydrolysis and microbe-resistant
  • Notch-resistant
  • Overall shield
  • PVC-free
  • chainflex® class: 4.2.3.1
od 135,63 CZK/m
35 položek, z toho připraveno k přepravě:
30 in 7 dnů
'Na stránku výrobku
UV resistance Medium Offshore MUD-resistant following NEK 606 - status 2009 Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 NFPA Following NFPA 79-2012 chapter 12.9 EAC Certified according to No. TC RU C-DE.ME77.B.01255 CTP Certified to no. C-DE.PB49.B.00420 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1 DESINA According to VDW, DESINA standardization UL/CSA AWM Style 10989 and 21223, 1.000 V, 80 °C

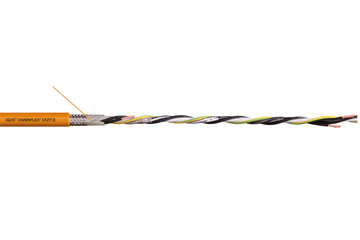

chainflex® servo cable CF27.D
chainflex® servo cable CF27.D
  • Requirements: For extremely heavy duty applications
  • Outer jacket: PUR
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • Halogen-free
  • Silicone-free
  • Flame retardant
  • Offshore
  • Coolant resistant
  • Hydrolysis and microbe-resistant
  • Notch-resistant
  • Overall shield
  • PVC-free
  • CFRIP®
  • chainflex® class: 6.5.3.1
od 236,94 CZK/m
25 položek, z toho připraveno k přepravě:
24 in 7 dnů
'Na stránku výrobku
UV resistance Medium Offshore MUD-resistant following NEK 606 - status 2009 Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 NFPA Following NFPA 79-2012 chapter 12.9 DNV Certified according to DNV Type Testing – Certificate No.: 61 935-14 HH EAC Certified according to No. TC RU C-DE.ME77.B.01255 CTP Certified to no. C-DE.PB49.B.00420 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF27.07.05.02.01.D, tested by IPA according to standard 14644-1 DESINA According to VDW, DESINA standardization UL/CSA AWM Style 10492 and 20234, 1.000 V, 80 °C

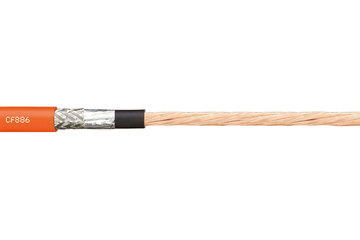

chainflex® motor cable CF886, spindle cable/single core
chainflex® motor cable CF886, spindle cable/single core
  • Requirements: For flexing applications
  • Outer jacket: PVC
  • Overall shield
  • Flame retardant
  • Silicone-free
  • Oil resistance: No oil resistance
  • chainflex® class: 3.1.1.1
od 121,77 CZK/m
3 položek, z toho připraveno k přepravě:
3 in 7 dnů
'Na stránku výrobku
Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). EAC Certified to no. TC RU C-DE. ME77.B.01561 CTP Certified to no. C-DE. PB49.B.00450 Lead free Following 2011/65/EU (RoHS-II) UL/CSA AWM Style 10107, 600 V, 80 °C

chainflex® motor cable CF300.UL.D
chainflex® motor cable CF300.UL.D
  • Requirements: For extremely heavy duty applications
  • Outer jacket: TPE
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Silicone-free
  • UV resistance: High
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • chainflex® class: 6.6.4.2
od 91,74 CZK/m
12 položek, z toho připraveno k přepravě:
12 in 7 dnů
'Na stránku výrobku
UV resistance High Flame retardant According to IEC 60332-1-2, CEI 20-35, FT-2 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). NFPA Following NFPA 79-2012 chapter 12.9 DNV Certified according to DNV Type Testing – Certificate No.: 61 935-14 HH EAC Certified according to No. TC RU C-DE.ME77.B.01255 CTP Certified to no. C-DE.PB49.B.00420 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF34.UL.25.04.D, tested by IPA according to standard 14644-1 DESINA According to VDW, DESINA standardization UL/CSA AWM Style 10492 and 21218, 1.000 V, 80 °C

chainflex® motor cable, CFPE
chainflex® motor cable, CFPE
  • Requirements: For extremely heavy duty applications
  • Outer jacket: TPE
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Silicone-free
  • UV resistance: High
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • chainflex® class: 6.6.4.2
od 86,13 CZK/m
11 položek, z toho připraveno k přepravě:
11 in 7 dnů
'Na stránku výrobku
UV resistance High Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). NFPA Following NFPA 79-2012 chapter 12.9 DNV Certified according to DNV Type Testing – Certificate No.: 61 935-14 HH EAC Certified according to No. TC RU C-DE.ME77.B.01255 CTP Certified to no. C-DE.PB49.B.00420 CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF34.UL.25.04.D, tested by IPA according to standard 14644-1 UL/CSA AWM Style 10492 and 21218, 1.000 V, 80 °C

chainflex® motor cable CF310.UL
chainflex® motor cable CF310.UL
  • Requirements: For extremely heavy duty applications
  • Outer jacket: TPE
  • Overall shield
  • Hydrolysis and microbe-resistant
  • Flame retardant
  • Silicone-free
  • UV resistance: High
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • chainflex® class: 6.6.4.1
od 124,08 CZK/m
13 položek, z toho připraveno k přepravě:
12 in 7 dnů
'Na stránku výrobku
UV resistance High Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). NFPA Following NFPA 79-2012 chapter 12.9 DNV Certified according to DNV Type Testing – Certificate No.: 61 935-14 HH EAC Certified according to No. TC RU C-DE.ME77.B.01255 CTP Certified to no. C-DE.PB49.B.00420 Lead free Following 2011/65/EU (RoHS-II) CEI Following CEI 20-35 Clean room According to ISO Class 1. Outer jacket material complies with CF34.UL.25.04.D, tested by IPA according to standard 14644-1

chainflex® motor cable CFCRANE PUR
chainflex® motor cable CFCRANE PUR
  • Requirements: For maximum voltages and outputs
  • Outer jacket: PUR
  • Overall shield
  • Coolant resistant
  • Notch-resistant
  • Hydrolysis and microbe-resistant
  • Halogen-free
  • Silicone-free
  • UV resistance: Medium
  • Oil resistance: Oil-resistant according to DIN EN 50363-10-2
  • PVC-free
  • chainflex® class: 6.6.3.1
od 1 581,03 CZK/m
5 položek, z toho připraveno k přepravě:
4 in 7 dnů
'Na stránku výrobku
UV resistance Medium Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 Lead free Following 2011/65/EU (RoHS-II)

chainflex® motor cable CF330.D
chainflex® motor cable CF330.D
  • Requirements: For heaviest duty applications
  • Outer jacket: TPE
  • Hydrolysis and microbe-resistant
  • Halogen-free
  • Silicone-free
  • UV resistance: High
  • Oil resistance: Oil-resistant according to DIN EN 60811-404, resistant to organic oils according to VDMA 24568 with Plantocut 8 S-MB by DEA
  • PVC-free
  • chainflex® class: 7.6.4.2
od 94,05 CZK/m
11 položek, z toho připraveno k přepravě:
11 in 7 dnů
'Na stránku výrobku
UV resistance High Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). Halogen-free Following EN 60754 EAC Certified according to No. TC RU C-DE.ME77.B.01255 Lead free Following 2011/65/EU (RoHS-II) Clean room According to ISO Class 1. Outer jacket material complies with CF9.15.07, tested by IPA according to standard 14644-1 DESINA According to VDW, DESINA standardization

chainflex® motor cable CF886
chainflex® motor cable CF886
  • Requirements: For flexing applications
  • Outer jacket: PVC
  • Overall shield
  • Flame retardant
  • Silicone-free
  • Oil resistance: No oil resistance
  • chainflex® class: 3.1.1.1
od 92,40 CZK/m
6 položek, z toho připraveno k přepravě:
6 in 7 dnů
'Na stránku výrobku
Flame retardant According to IEC 60332-1-2, CEI 20-35, VW-1, FT-1 Silicone-free Free from silicon which can affect paint adhesion (according to PV 3.10.7 – status 1992). EAC Certified to no. TC RU C-DE. ME77.B.01561 CTP Certified to no. C-DE. PB49.B.00450 Lead free Following 2011/65/EU (RoHS-II) UL/CSA AWM Style 10492 and 2570, 1.000 V, 80 °C
